Reference: BDLKULSDMINHD
Blackmagic Ultrastudio HD Mini
VAT excluded
Contact us to or
- SD/HD/3G-SDI and Analog Inputs
- HDMI and Dual SDI Outputs
- Thunderbolt 3 Interface
- Supports SD and HD Resolutions
- 4:2:2 and 4:4:4 Color Sampling Support
- 8/10/12-Bit Color Depth
- RS-422 Deck Control
- HD to SD Down-Conversion
We ship daily via the most careful express courier, such as UPS, FedEx, DHL
Secure Payments - Pay with all Credit Cards or Paypal
If you are not fully satisfied with your purchase, let us help you with a replacement, or return
We are the experts. That’s why we can achieve the best solutions for your projects. Contact us and
We believe in dialogue and in people. That’s why we guarantee you continuous assistance
Blackmagic Design Ultrastudio HD Mini
UltraStudio HD highlights proficient broadcast quality associations that incorporate 3G-SDI, analog YUV and composite NTSC/PAL video inputs, along side a reference input. There are too two ¼” sound associations for analog sound input that work with adjusted and HiFi sources. In expansion, UltraStudio HD mini can inaccessible control proficient broadcast decks utilizing the built in RS-422 association. For yield, you get double connect 3G-SDI with fill and key, and an HDMI association for checking video with a huge screen tv!

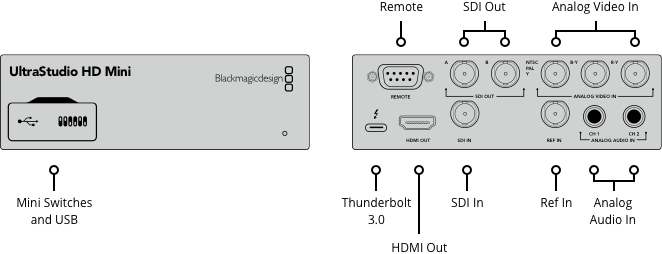

SDI Connections
The Blackmagic Ultrastudio HD Mini BDLKULSDMINHD is designed with professional-grade SDI (Serial Digital Interface) connections.It comes with 1 SD/HD switchable 3Gb/s SDI video input, enabling you to connect a variety of devices with high-definition video. The device also provides two 3Gb/s SD/HD switchable SDI video outputs that support fill and key. Moreover, the SDI rates include 270Mb, 1.5G, and 3G, offering versatility for different broadcasting needs.
HDMI Video Output
In spite of the fact that this show doesn't incorporate HDMI inputs, it does highlight an HDMI 1.4b sort A connector for video yield. This HDMI yield gives you the adaptability to associate the gadget to an cluster of shows, guaranteeing high-quality video transmission for your ventures.
Analog Connections
The Blackmagic Ultrastudio HD Mini BDLKULSDMINHD provides analog video inputs for Y, B-Y, R-Y/NTSC/PAL, allowing for compatibility with a range of older devices. Furthermore, the device includes 2 x 1/4 inch jack connectors for balanced and unbalanced analog audio inputs. This offers a convenient solution for integrating audio components into your setup.
Embedded Audio Support
In addition to the analog sound inputs, the gadget too underpins inserted sound. Particularly, it can handle 16 channels implanted in SD and HD through SDI sound inputs and yields, and 2 channels implanted in SD and HD by means of HDMI sound yields. This progressed highlight implies that sound and video can be transported at the same time over the same cable, streamlining your workflows.
Codec Support
With support for a wide range of codecs including AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHD, DNxHR, multiple variants of Apple ProRes, and uncompressed 8-bit 4:2:2, and 10‑bit 4:2:2, the Blackmagic Ultrastudio HD Mini BDLKULSDMINHD ensures maximum compatibility with your media files. This feature saves you time and effort in the post-production stage.
Software Inclusion and Upgrade
The Blackmagic Ultrastudio HD Mini BDLKULSDMINHD comes with a suite of software including Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility, and Blackmagic driver for Mac and Windows. For Linux users, the package includes Media Express, Blackmagic Desktop Video Utility, and Blackmagic driver. Notably, the internal software driver can be easily upgraded, with firmware built into the software driver. The software driver loads upgrades at system start or via updater software, ensuring your device stays up-to-date with the latest features and enhancements.
